Country of Origin	USA
Die Set Included	10 gauge upper punch – 3/16" lower die
Thickness Capacity	Up to 1/2" Mild Steel *additional die sets sold separately based on material thickness/degree of bend
Compatibility	Fits in all METALpro Ironworkers
Weight	83 lbs
Dimensions	16.25" × 11.5" × 5.5"

UL Listed & Approved for Sale in Canada

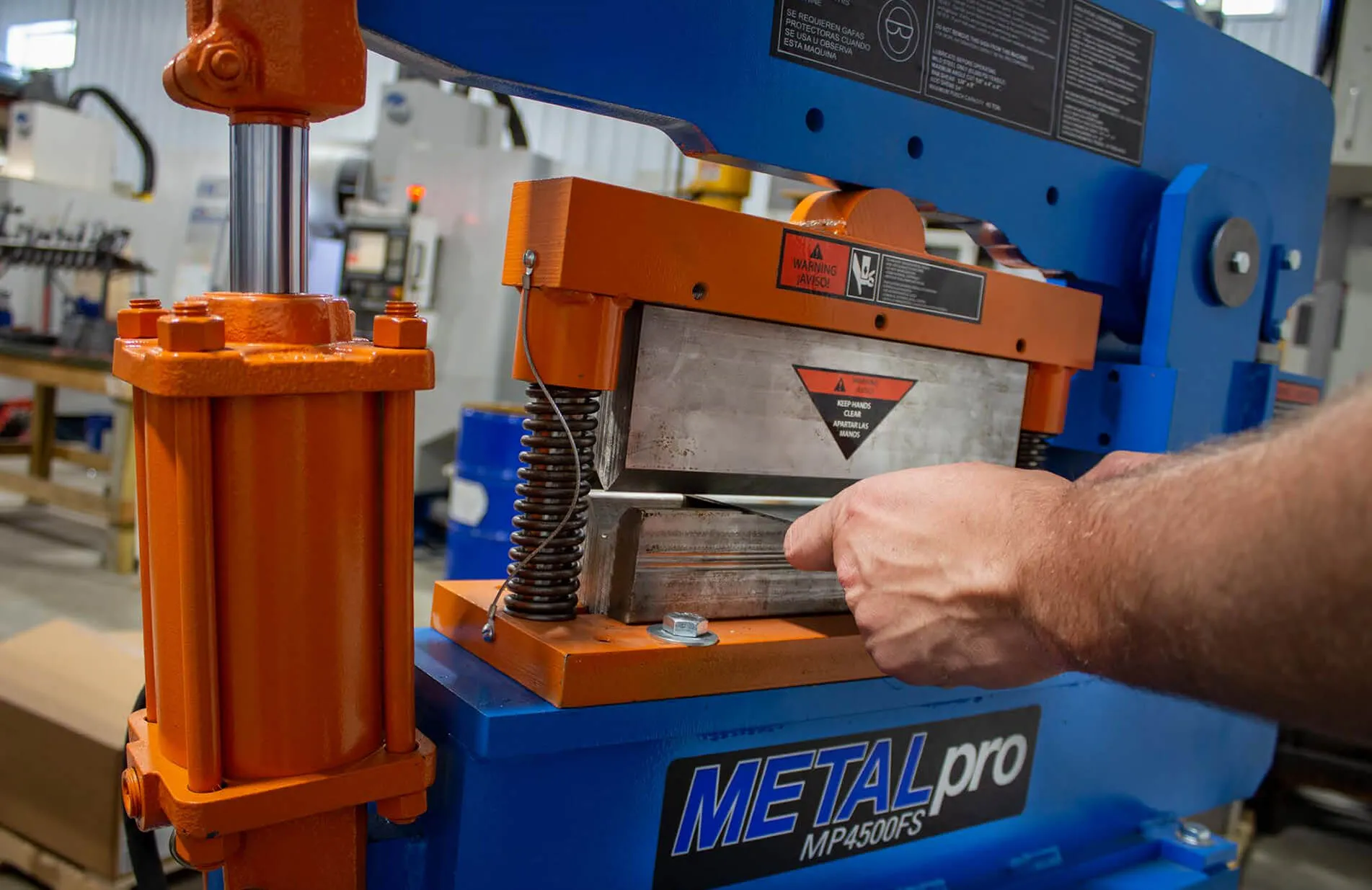

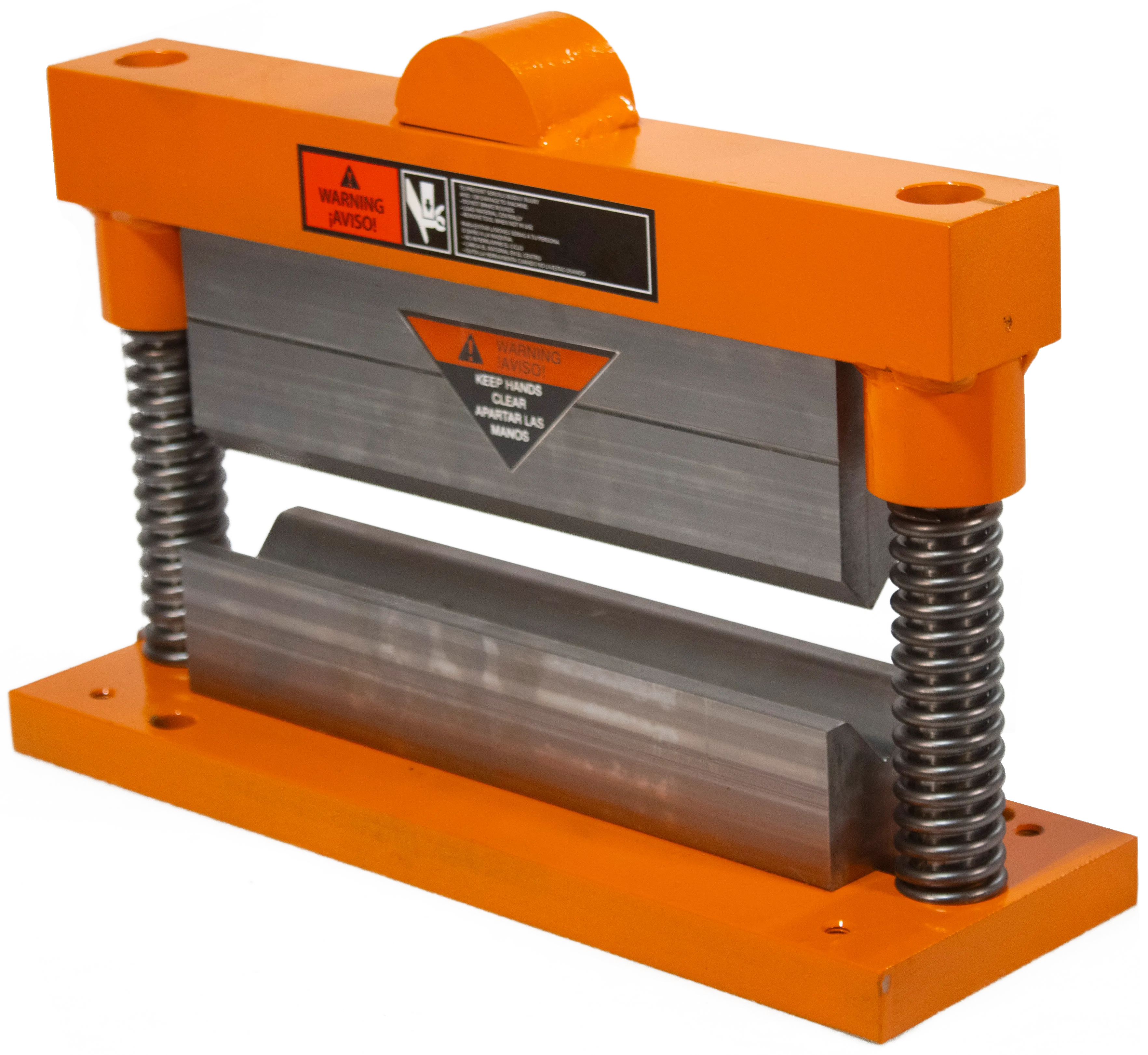

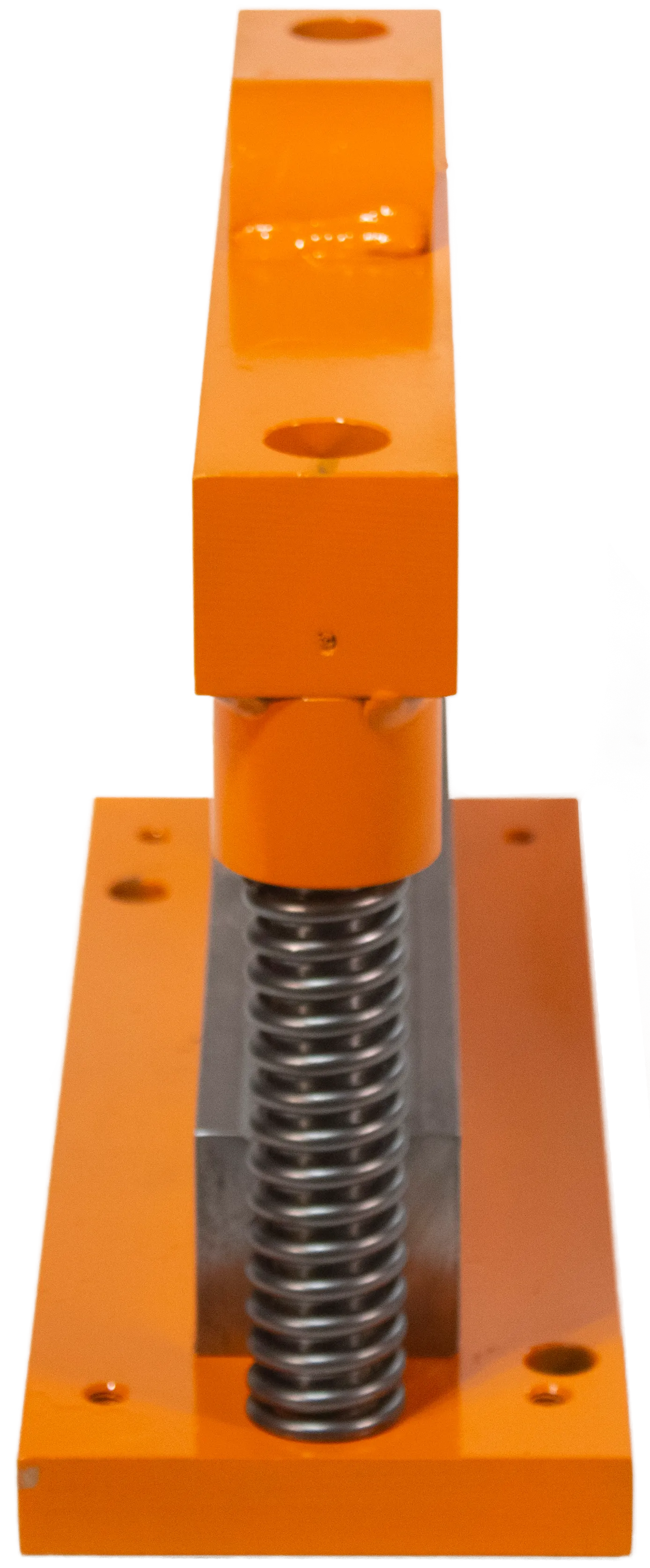

METALpro’s 12 inch  brake accessory fits in any METALpro Ironworkers central workstation. This accessory comes equipped with a standard 90 degree forming brake die set (10-gauge upper punch and 3/16” lower die). METALpro offers an assortment of die sizes and styles,  capable of forming 28 gauge to ½” mild steel (width limited to tonnage requirements). All METALpro machines and accessories are proudly made in the USA and built to last.

The METALpro MP4510 is a universal brake that can be used in all METALpro machine models. It also can be used in other applications such as an H frame presses.

Calculating bending tonnage: 150 x material thickness = tonnage required for 12″ length of mild steel

Always bend material (regardless of width) in center of brake.
